Agile manufacturing units for optimized stator production

The modular product portfolio of Schaeffler ELMOTEC STATOMAT allows individual machines or production steps to be flexibly combined into agile production units. Fully automatic winding, insertion, and forming can be combined flexibly with automatic loading and unloading that the highest output quantities can be realized economically. At the same time, the manufacturing cells are optimized for fast and ergonomic set-up without compromising on safety.

Modular production for maximum agility
  • Winding
  • Insertion
  • Cover strip assembly
  • Joining
  • Forming
  • Round tables or gripper systems
Fully automated winding

Whether flyer winding, segment winding or needle winding, the automatic manufacturing cells from Schaeffler ELMOTEC STATOMAT are based on our extensive and modular equipment portfolio. This allows agile manufacturing units to be tailored precisely to customer requirements.

Insertion, forming and integrated assembly of cover strips for slot insulation

After the winding has been produced, it is automatically assembled into the supplied stack of metal sheets. The perfectly coordinated processes guarantee the highest filling ratios without damaging the wire. To finally fix the assembled winding, the cut-to-size cover strips are inserted directly after insertion (and intermediate forms if required).


The automation of the agile manufacturing units is carried out with the aid of loading and unloading systems or individually programmed robots. Further modules, such as optical inspection systems, can be flexibly added according to customer requirements.

Do you have any questions about our equipment or the services we offer?
Our experts will be happy to advise you on questions relating to our winding technology or special manufacturing processes for stator production.
Discover more solutions from Schaeffler ELMOTEC STATOMAT

In addition to individual production, our comprehensive range of services and product portfolio also includes stand-alone machines that can be individually combined to form automatic production cells. We offer fully automatic production lines especially for the requirements of series production. The manufacturing solutions from Schaeffler ELMOTEC STATOMAT combine many years of know-how in the field of winding technology with state-of-the-art automation technology.

Maximum filling ratios for highest efficiency

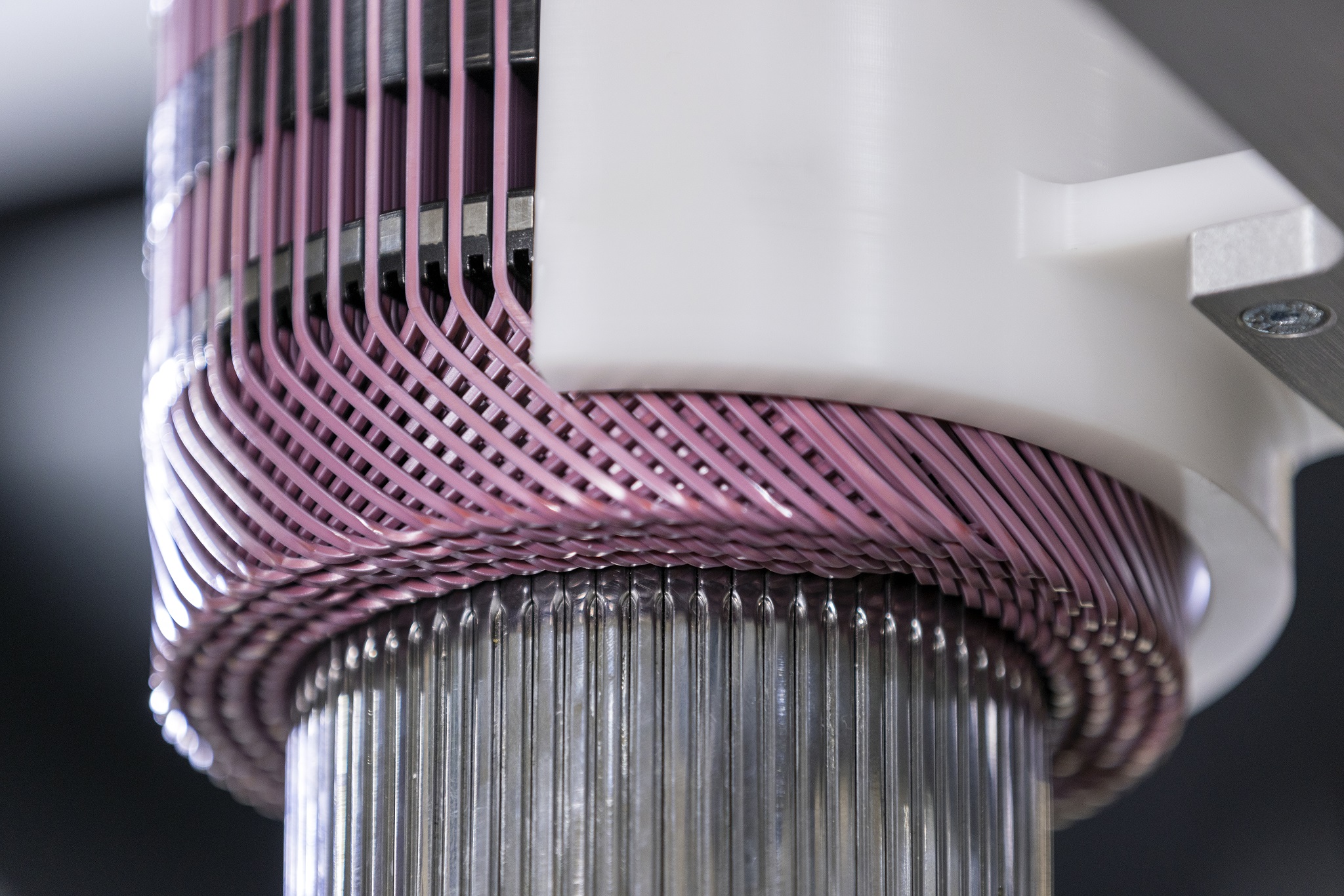

Flat Wire Wave Winding
  • Compact motor designs for highest power density
  • Patented “U-Shape” technology
  • Up to 10 wire jumps without the use of “special pins”
  • Elimination of critical manufacturing steps for maximum process reliability
  • Minimal number of welding spots

With the innovative flat wire wave winding technology we help our customers to realize even more efficient drive concepts and to set new benchmarks in the field of power density.
